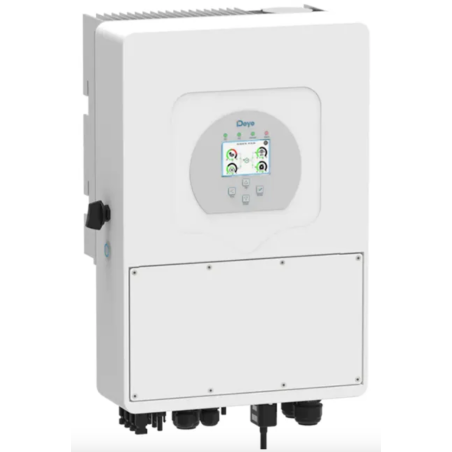

Model

SUN-3.6K-SG03LP1-EU

Battery Input Data

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40~60V

Max. Charging Current (A)

90A

Max. Discharging Current (A)

90A

Charging Curve

3 Stages / Equalization

External Temperature Sensor

Optional

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

4680W

PV Input Voltage (V)

370V (125V~500V)

MPPT Range (V)

150~425V

Full Load DC Voltage Range

300~425V

Start-up Voltage (V)

125V

PV Input Current (A)

11A+11A

No.of MPPT Trackers

2

No.of Strings Per MPPT Tracke

1+1

AC Output Data

Rated AC Output and UPS Power (W)

3600W

Max. AC Output Power (W)

3960W

Peak Power (off grid)

2 times of rated power, 10 S

AC Output Rated Current (A)

16.4

Max. AC Current (A)

18

Max. Continuous AC Passthrough (A)

35A

Power Factor

0.8 leading to 0.8 lagging

Output Frequency and Voltage

50/60Hz; 220/230 / 240Vac (single phase)

Grid Type

Single Phase

Current Harmonic Distortion

THD<3% (Linear load<1.5%)

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

96.50%

MPPT Efficiency

99.90%

Protection

Anti-islanding Protection

Integrated

PV String Input Reverse Polarity Protection

Integrated

Insulation Resistor Detection

Integrated

Residual Current Monitoring Unit

Integrated

Output Over Current Protection

Integrated

Output Shorted Protection

Integrated

Output Over Voltage Protection

Integrated

Surge protection

DC Type II / AC Type II
